Benefitsfast shuttering and striking as well as moving of the formwork carriage thanks to customised special design with hydraulics installation
-
Benefitsreduction of tie points through optimised areas of influence
The Project
Impressions from the project process
Tunnel formwork carriage on the basis of the VARIOKIT civil engineering construction kit for the six additional concreting sections at the southern portal carried out parallel to the construction of the main tunnel elements.

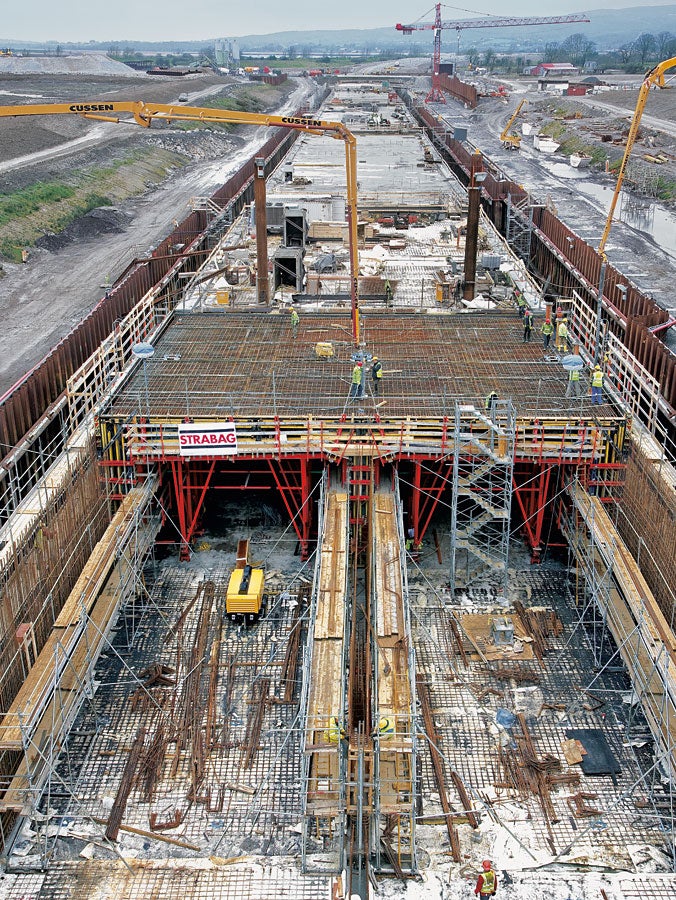

Five tunnel elements - each 100 m long – were pre-fabricated in the dry dock with help of the PERI tunnel formwork carriage.

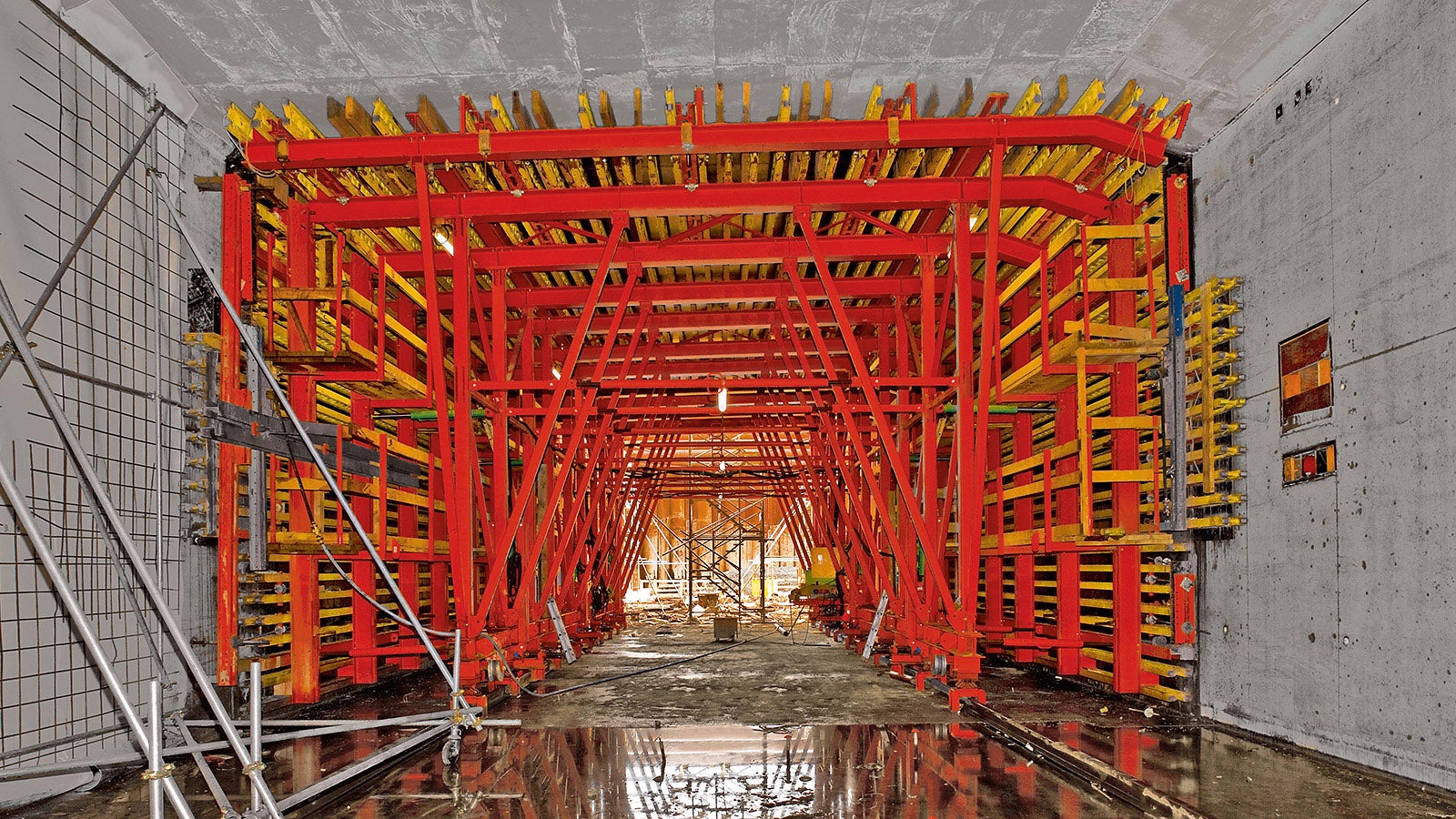

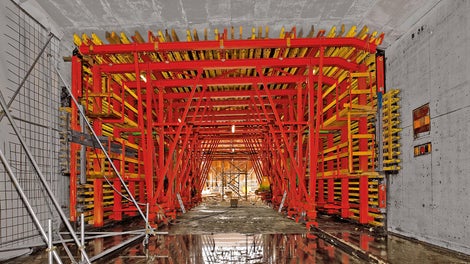

PERI engineers developed two customized special carriages which allowed the construction of the 28 concreting sections, each 20 m long, in regular six-day cycles.

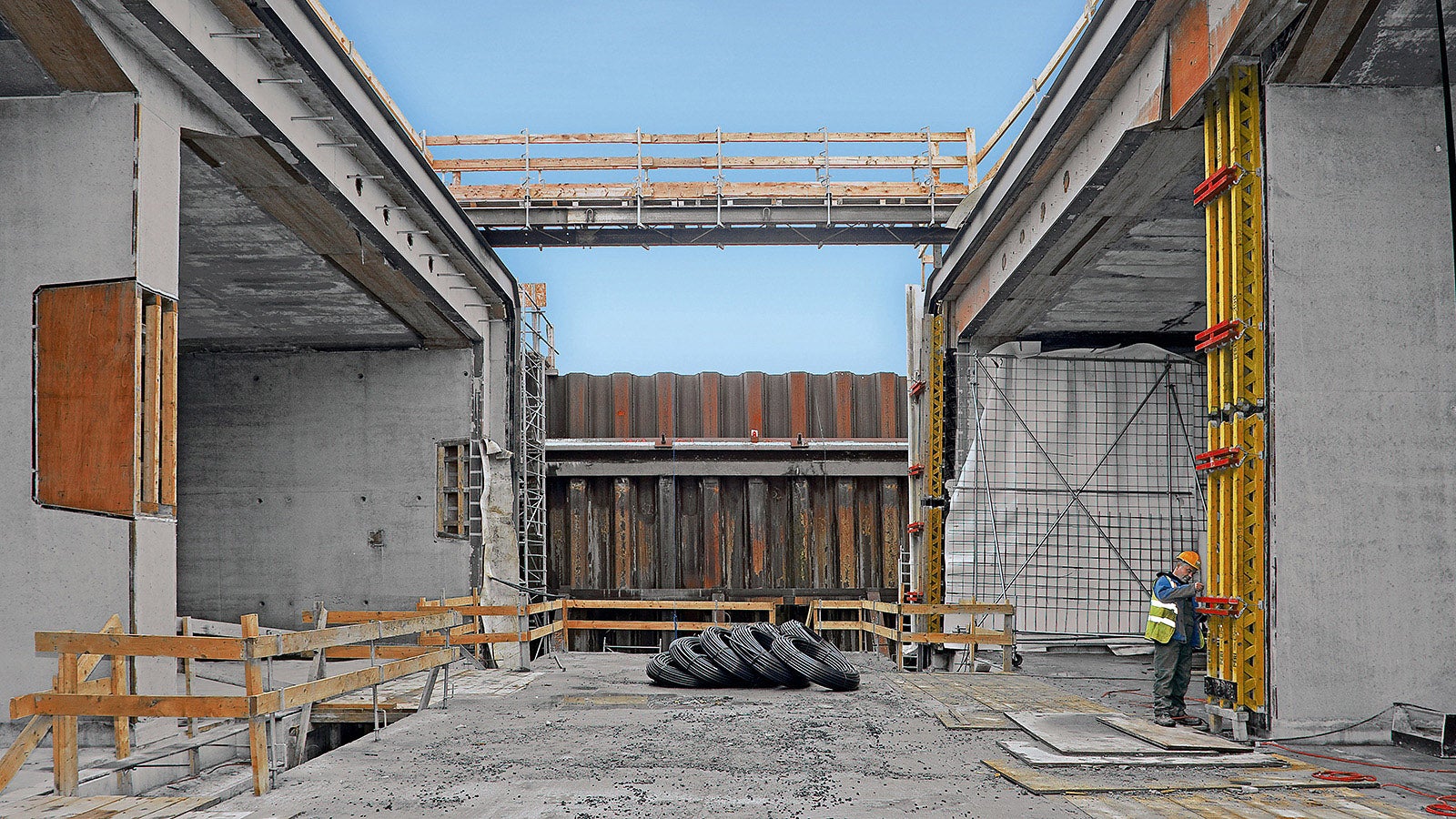

The PERI formwork solution took into consideration two different sealing versions for the element and casting joints in the stopend formwork.

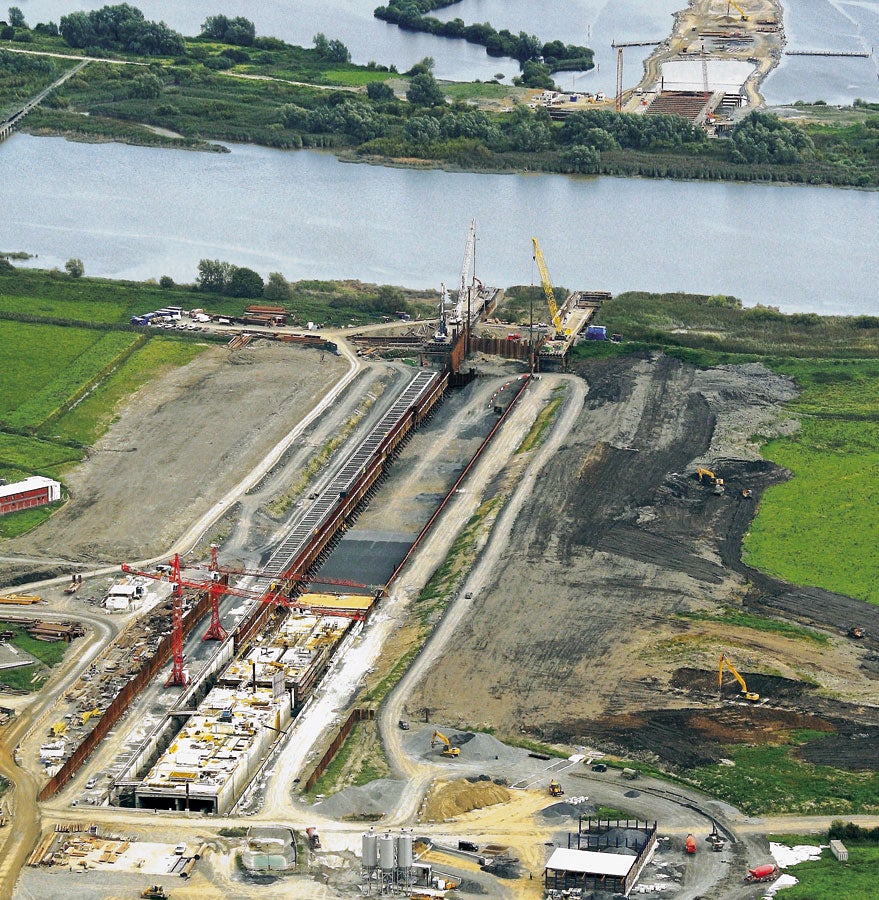

Aerial view of the dry dock which is located to the north of the Shannon, for the pre-fabrication of the five 100-metre long tunnel elements. (Photo: DirectRoute Ltd.)
Project Information
Hannes Mauracher
Construction Manager
PERI offered us the best technical design and the most cost-effective solution. What we were able to achieve with the formwork carriage was more than satisfying. This helped us to pour the segments in a weekly cycle. What qualifies our formwork partner even more is the fact that the technical support was always able to provide us with the right solution in case of questions of detail.
