Mersey Gateway, Cheshire
Project data
Location: Cheshire, United Kingdom
Purpose: Merseyside’s transport network is undergoing significant improvements. The Mersey Gateway will provide an alternative route, reducing congestion and generating an estimated £61.9m in Gross Added Value by 2030.
Date of Completion: 2017
Requirements
Merseylink Civil Contractors required formwork solutions for the lower pylons and hammerheads.
Customer
Merseylink Civil Contractors (FCC Construcción S.A., Kier Infrastructure and Overseas Limited and Samsung C&T Corporation)
PERI solution

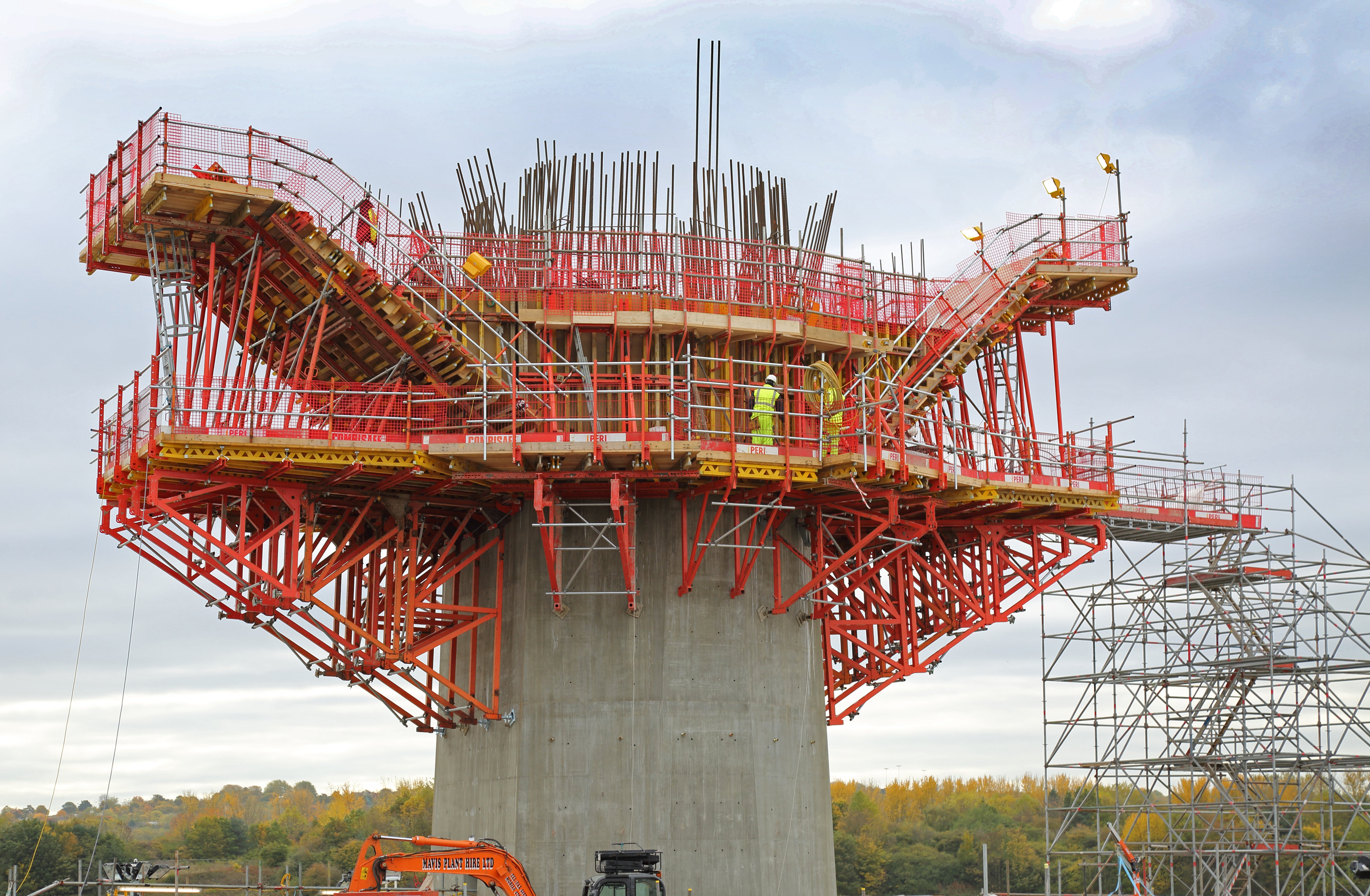

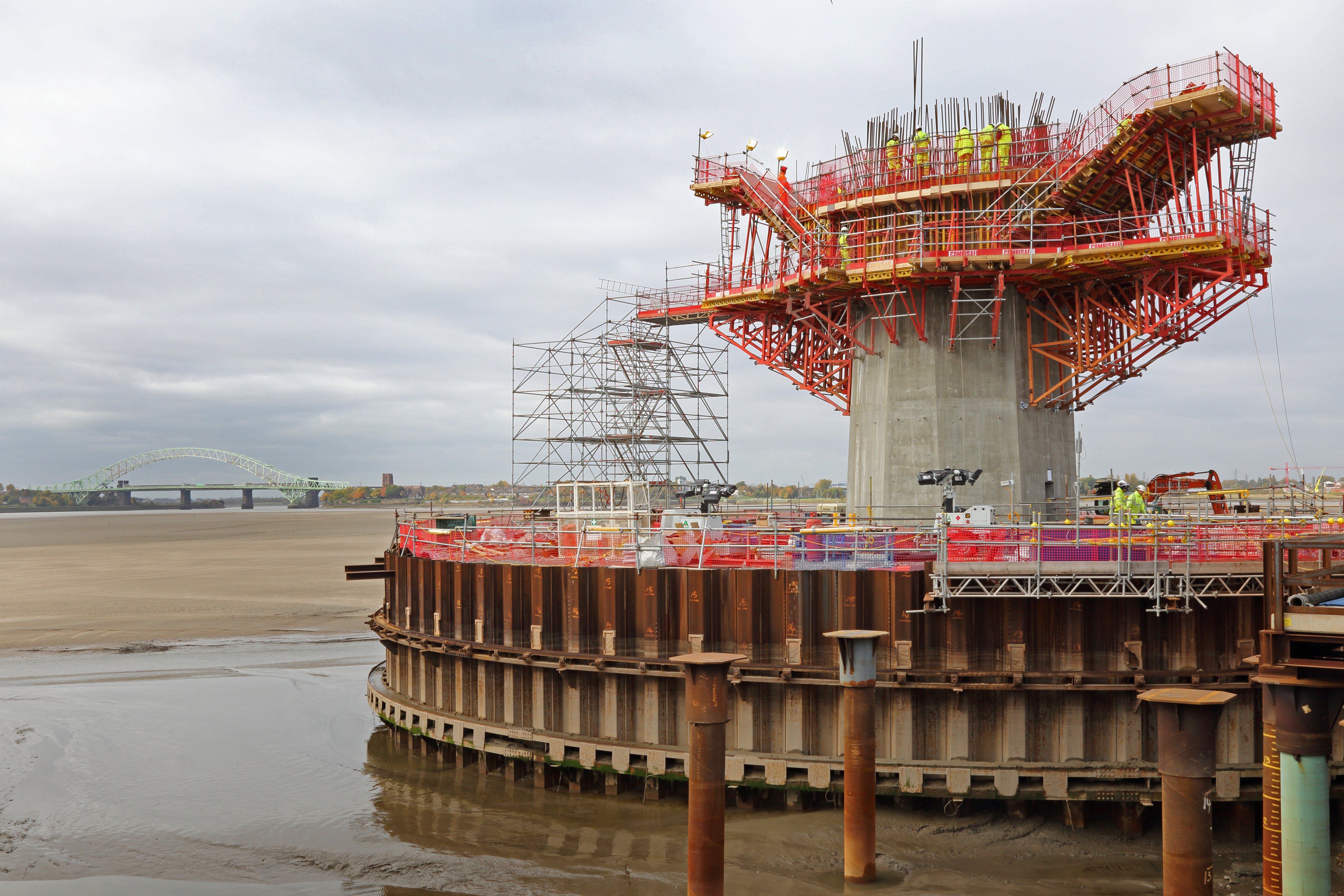

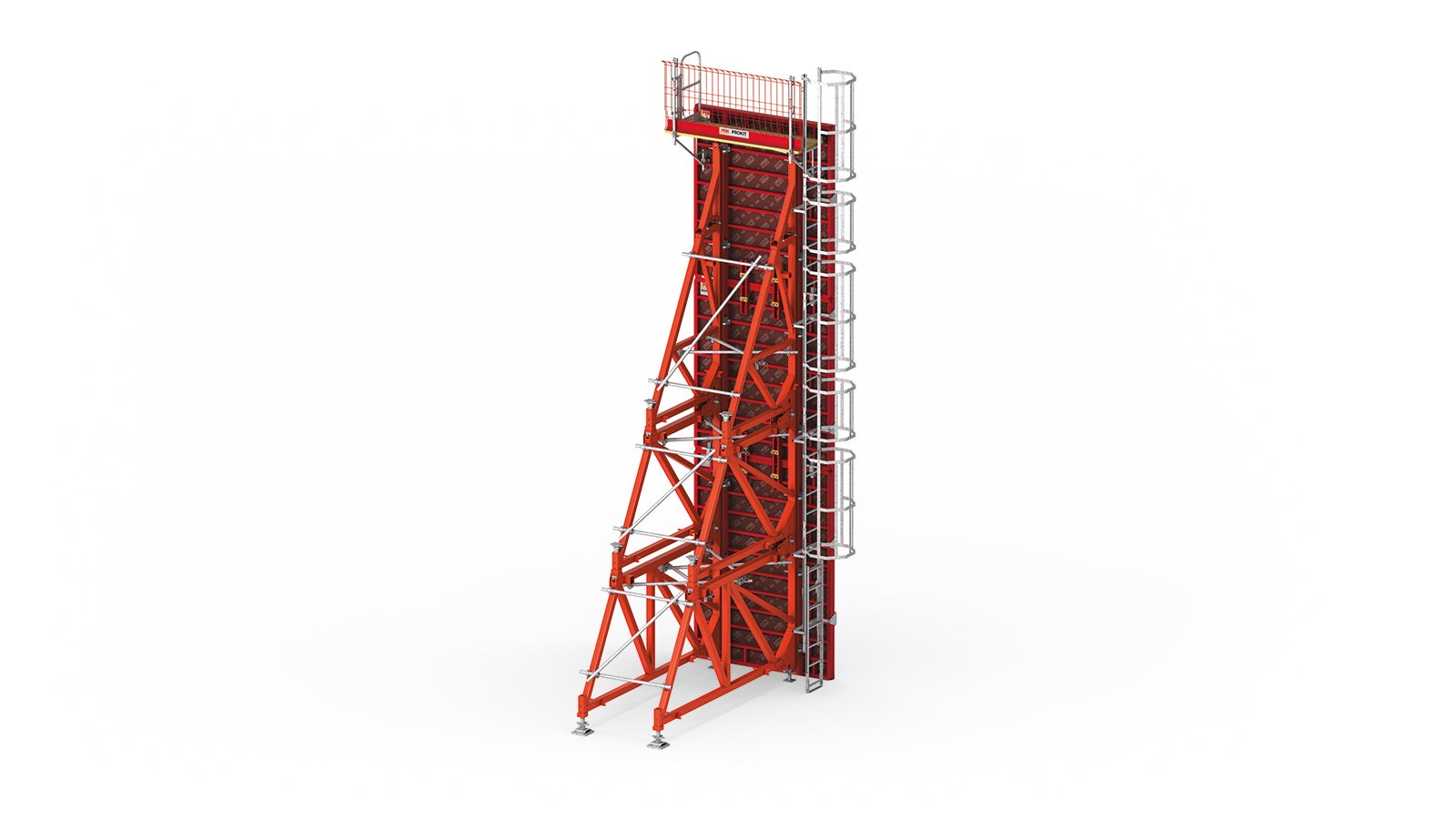

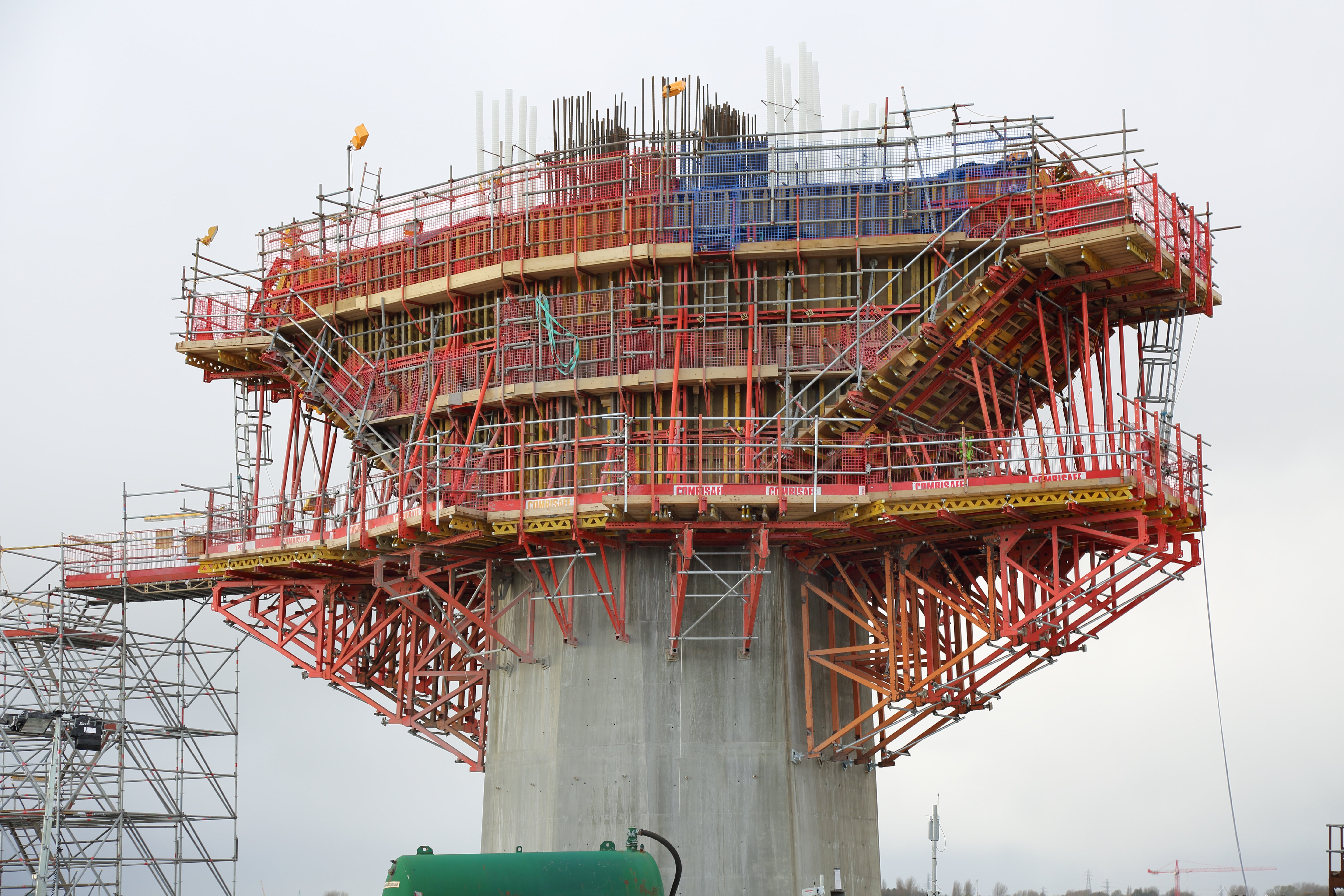

- VARIO GT24 formwork with SB Frames and VARIOKIT system were employed to construct the hammerheads. Unlike a typical application, we employed the frames as a platform, creating a unique design for the intricate shape of the hammerhead.
- Once the central hammerhead had been completed, the platform was reused for the pier tables. Sequenced construction avoided the accumulation of vertical forces; ensuring a safer, more manageable process.
- Once the lower pylons and hammerheads had been completed, the central pier table and three different-sized pylons were constructed.

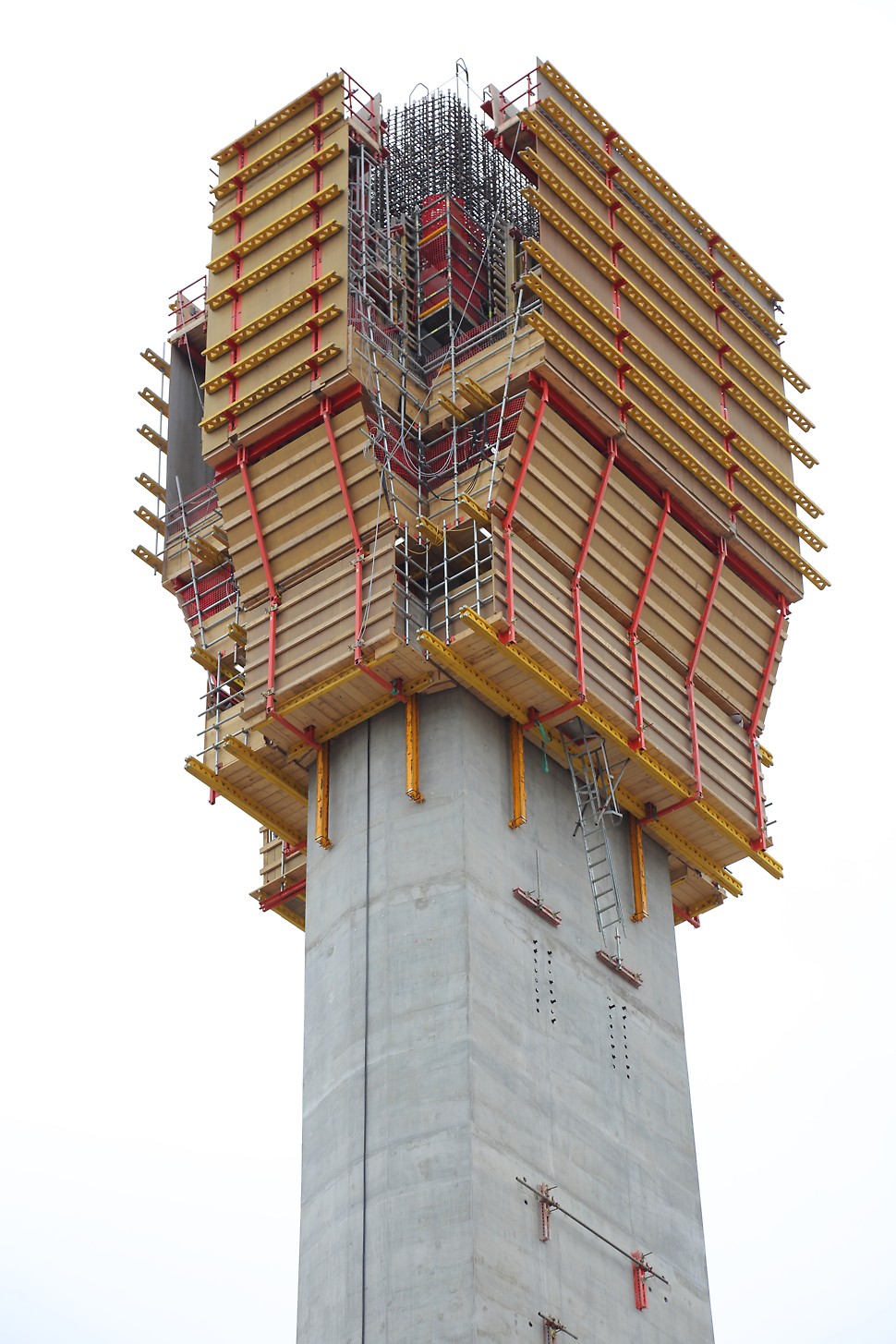

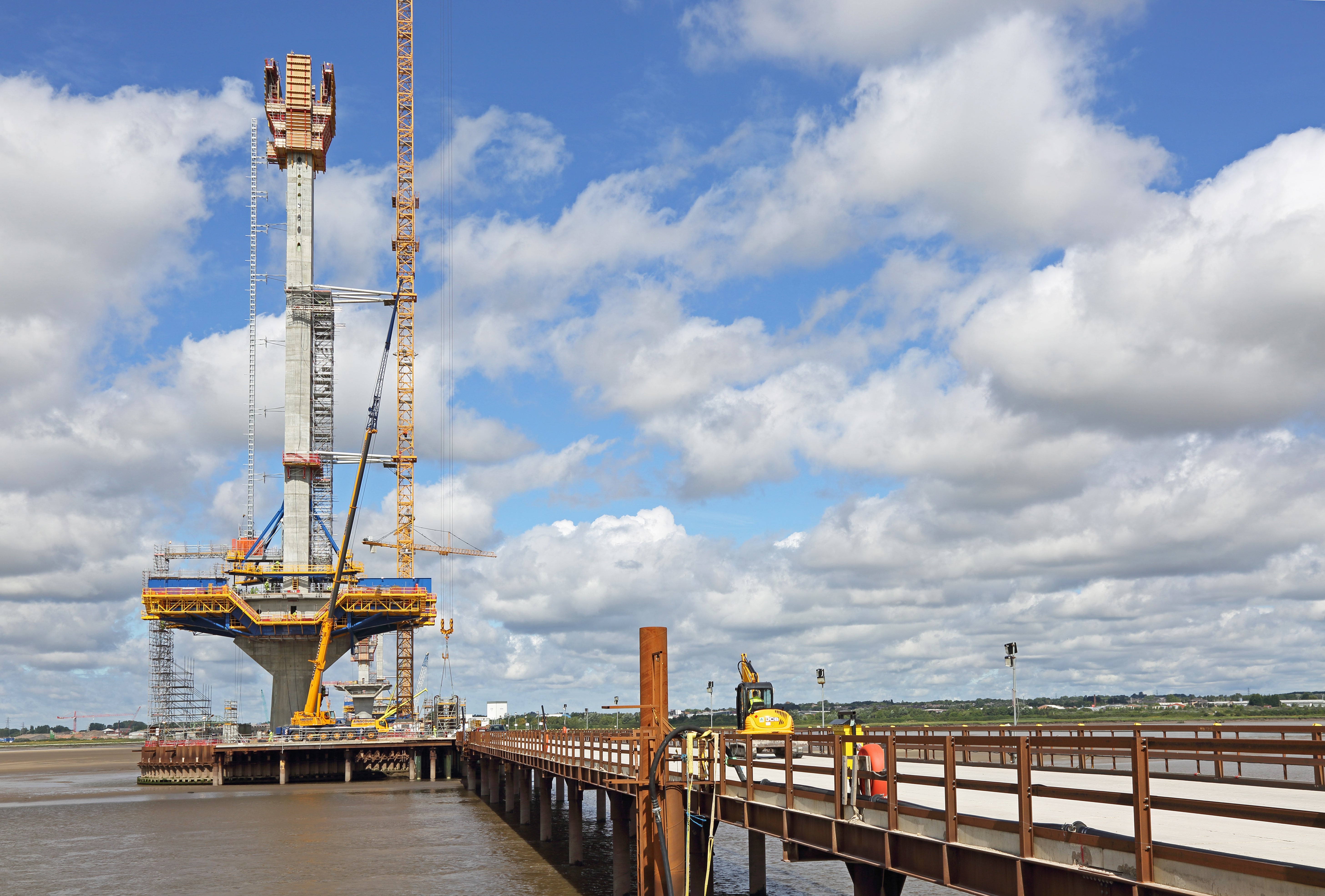

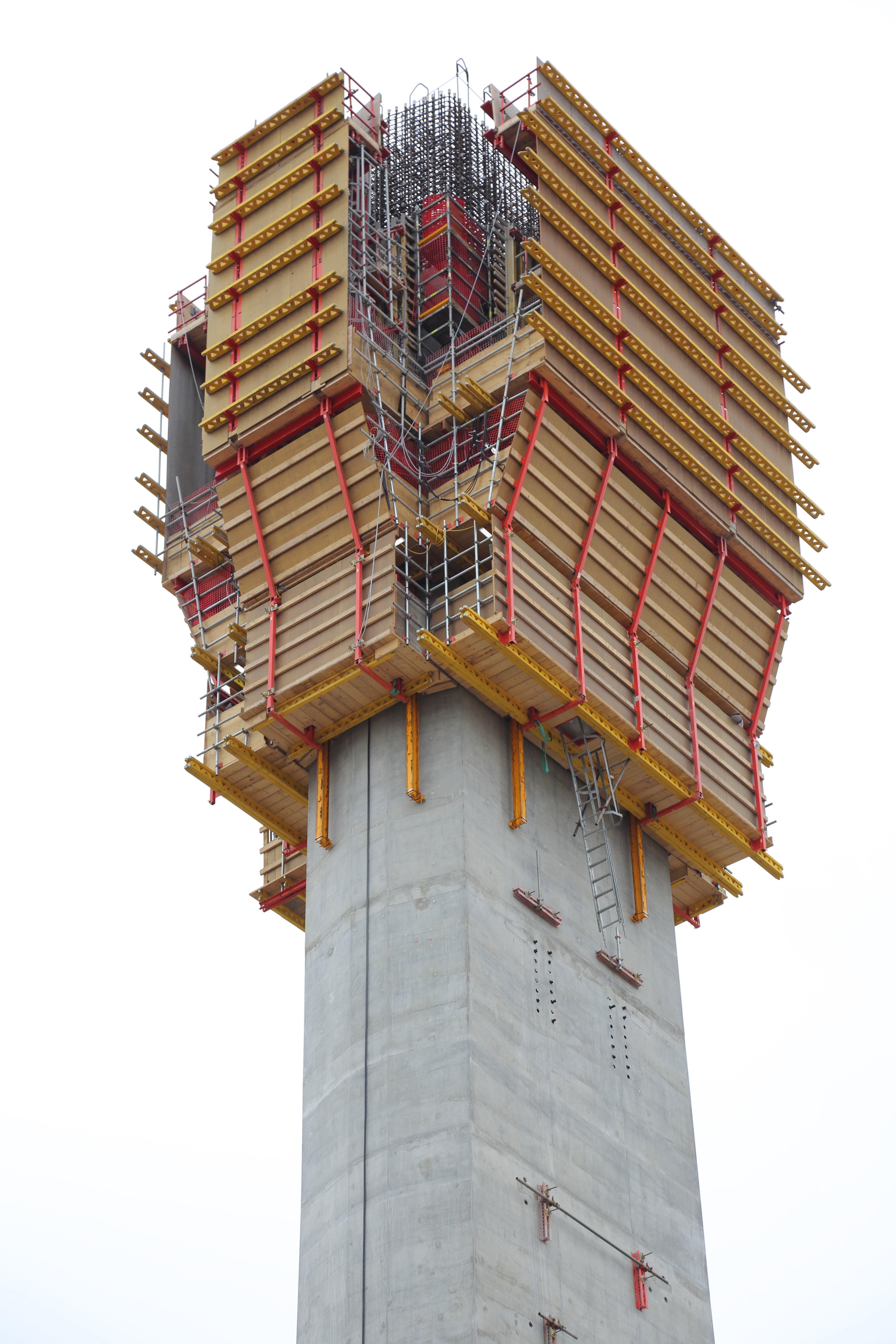

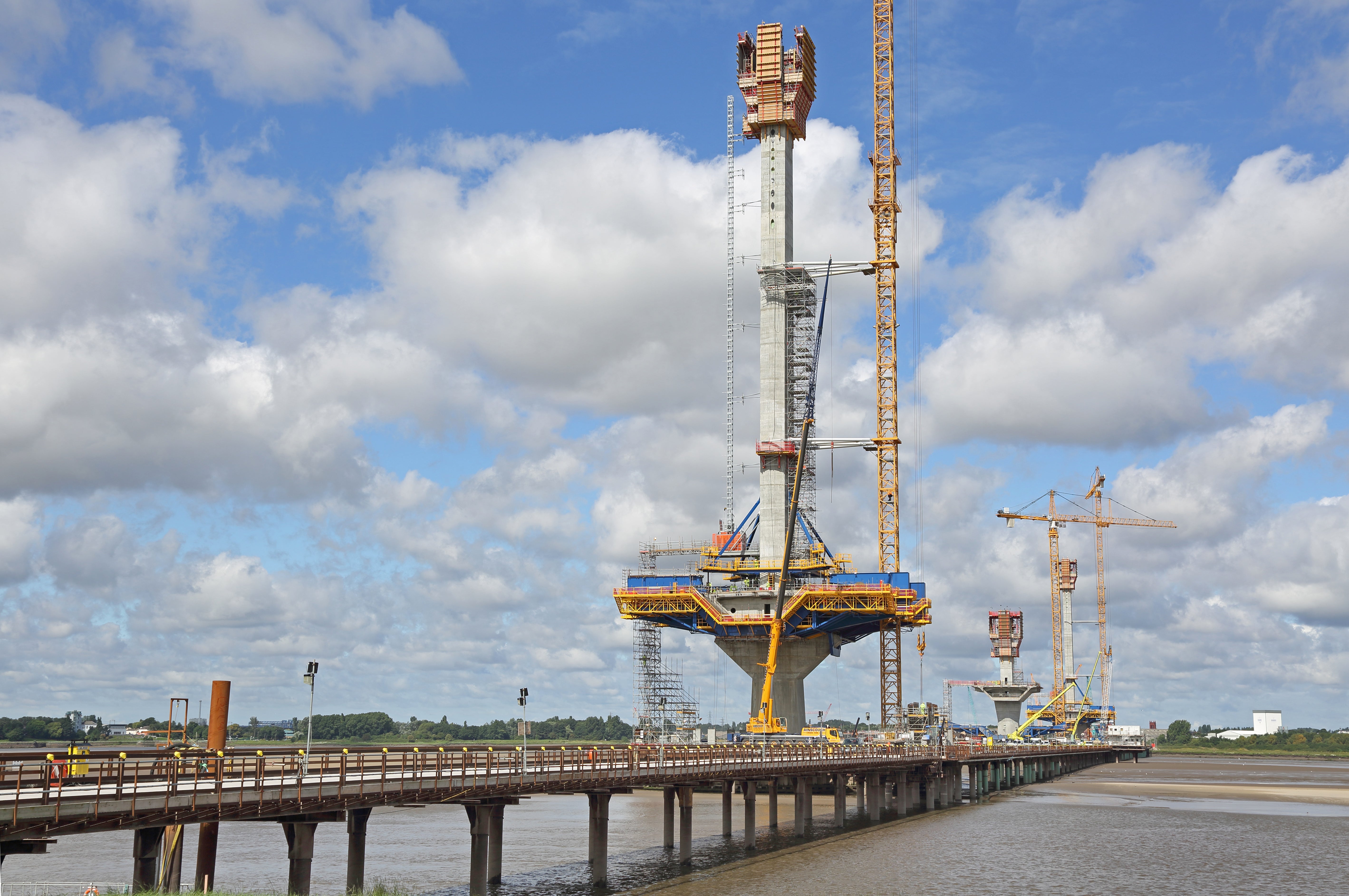

- With the south pylon rising to 125m high, the ACS and custom formwork platforms were on hand to combat the challenging wind speeds.
