VARIOKIT VTC Tunnel Carriage

VARIOKIT system solutions for cut-and-cover and mining techniques

Thanks to its easy handling combined with PERI engineering expertise, the VTC Tunnel Formwork Carriage always provides a clever and tailored project solution. Due to the flexible VARIOKIT Modular Construction Kit and the VTC system components for tunnel construction, the system can be flexibly adapted to match a wide range of tunnel cross-sections and designs.

The VTC Tunnel Formwork Carriage is an optimised project solution that accelerates the work process enormously. Depending on the project, it is possible to choose between an entirely manual operation or one completely equipped with hydraulic equipment. With hydraulic equipment for shuttering and striking, the efficiency of the application can be increased. Workloads are minimised for positioning, striking and moving operations.

With a range of other optional features, the performance of the tunnel formwork carriage can be adapted to suit a diversity of requirements.

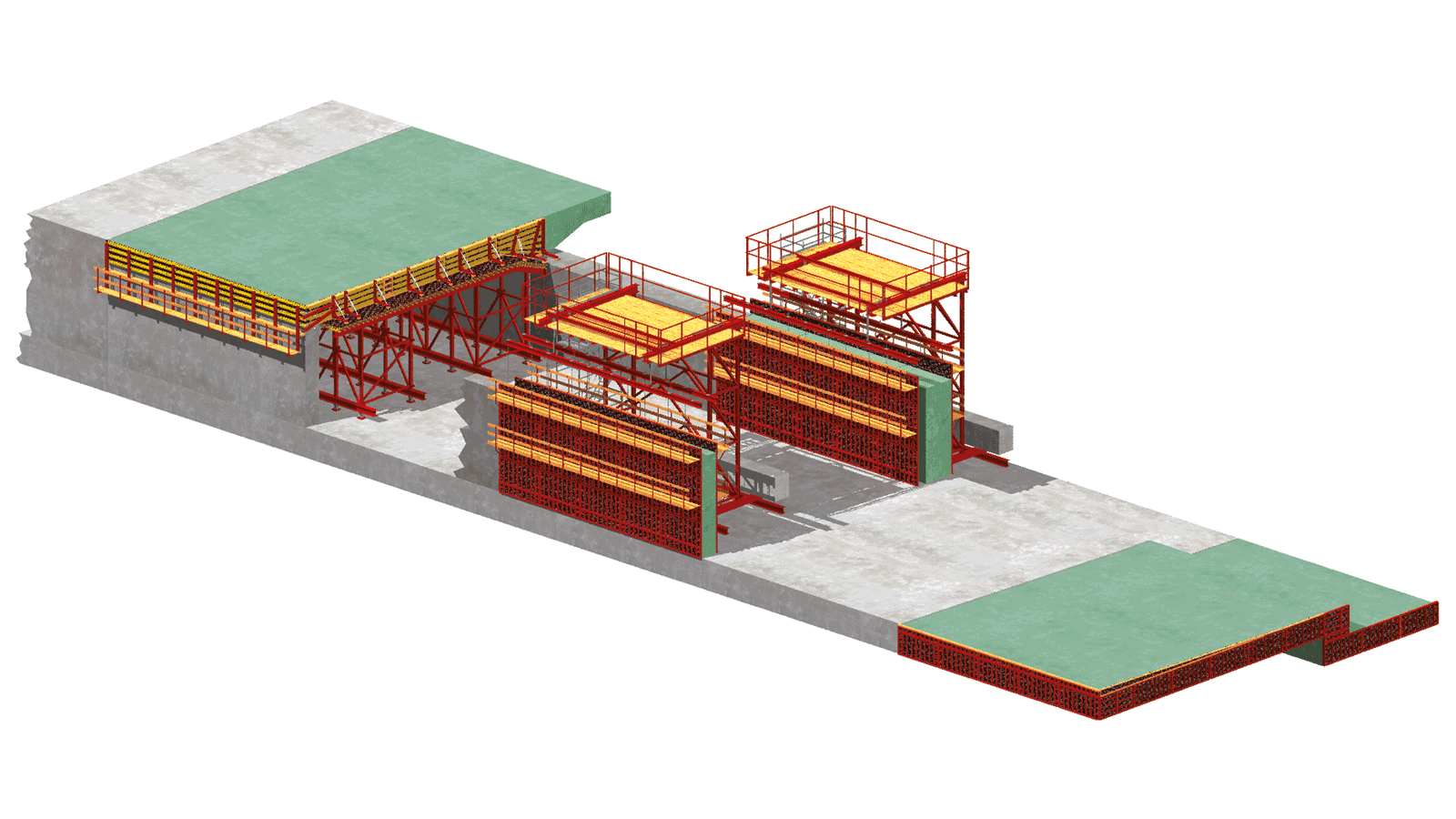

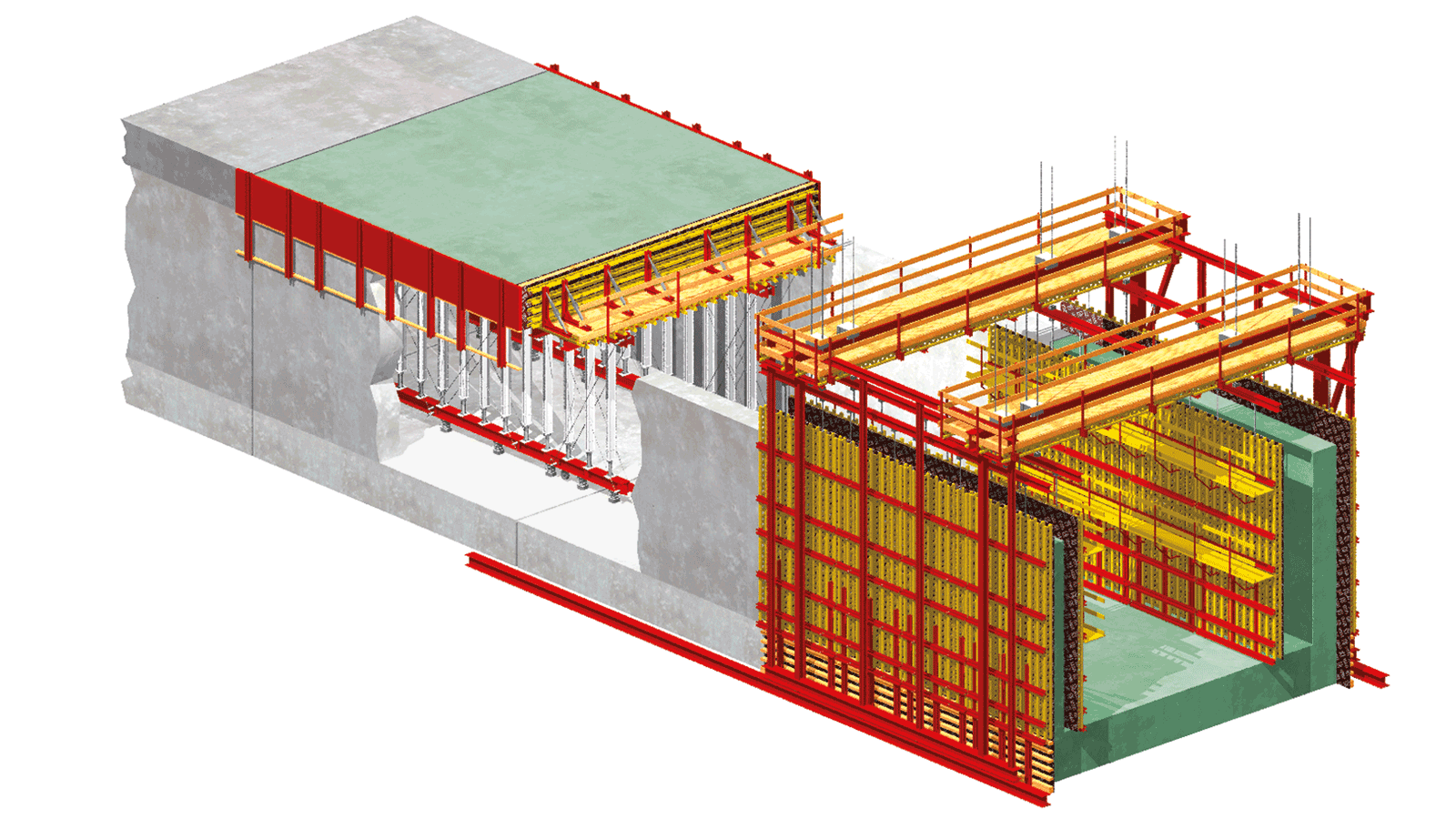

  • VTC Tunnel Formwork Carriage for the cut-and-cover method

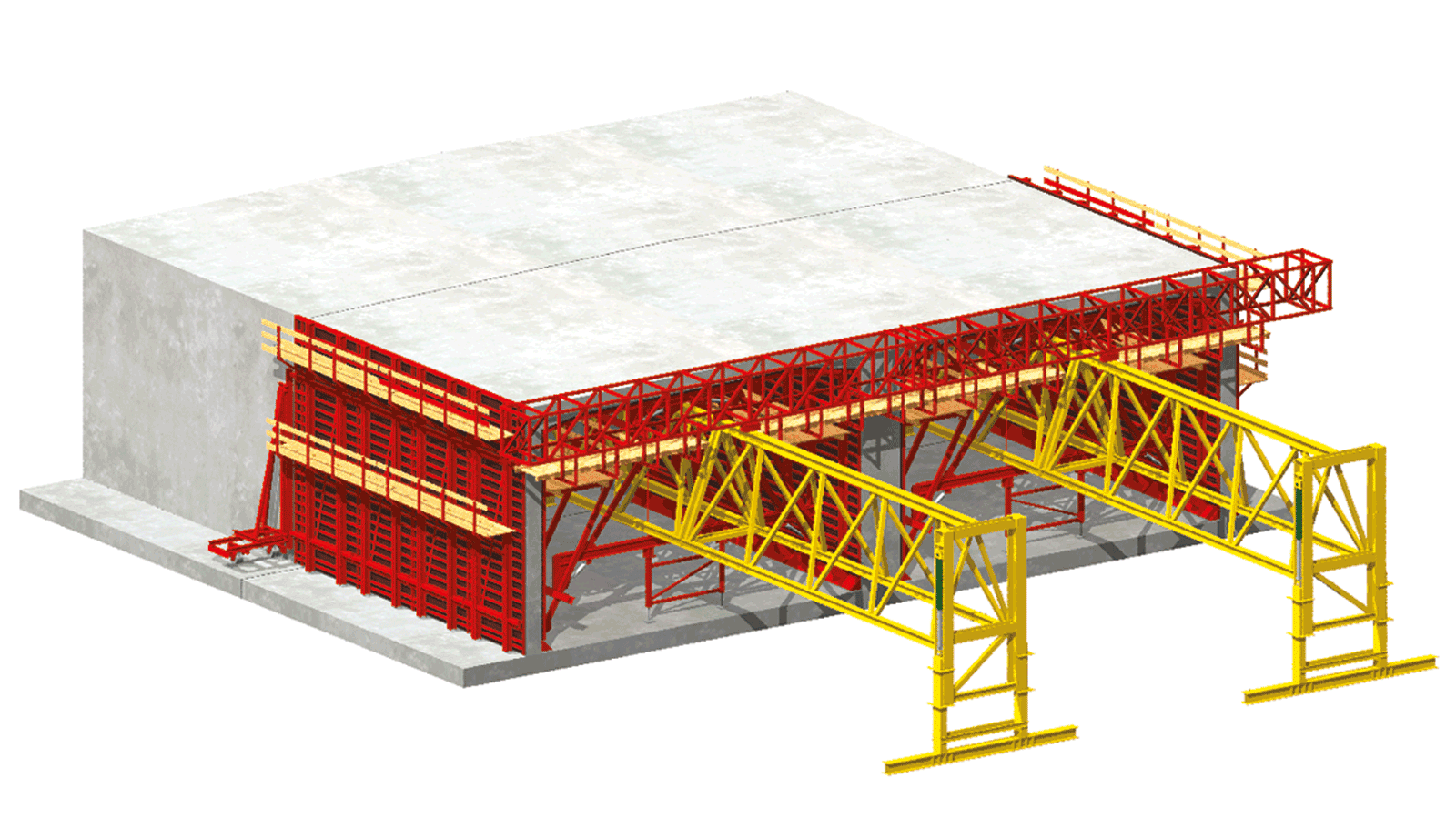

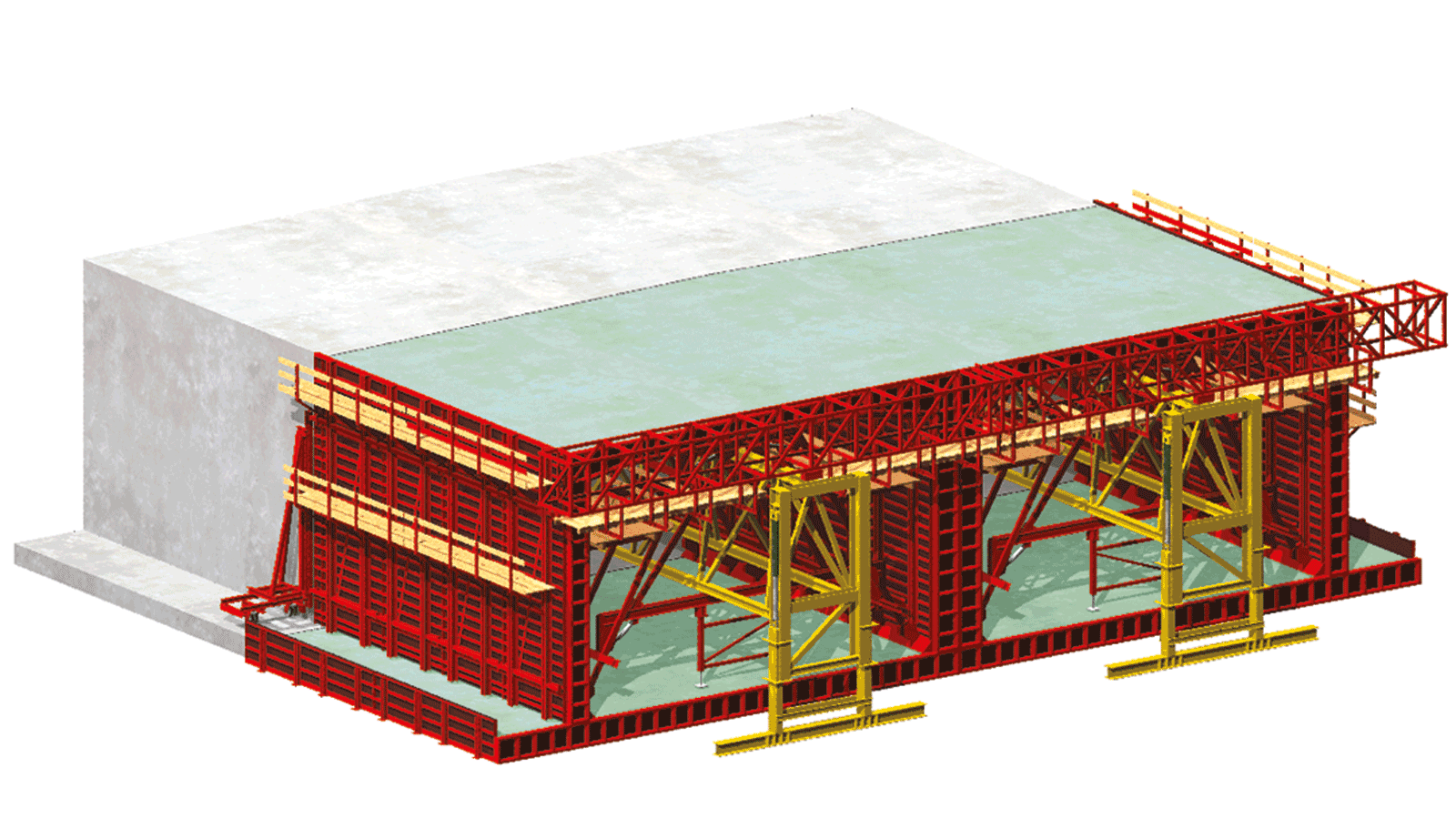

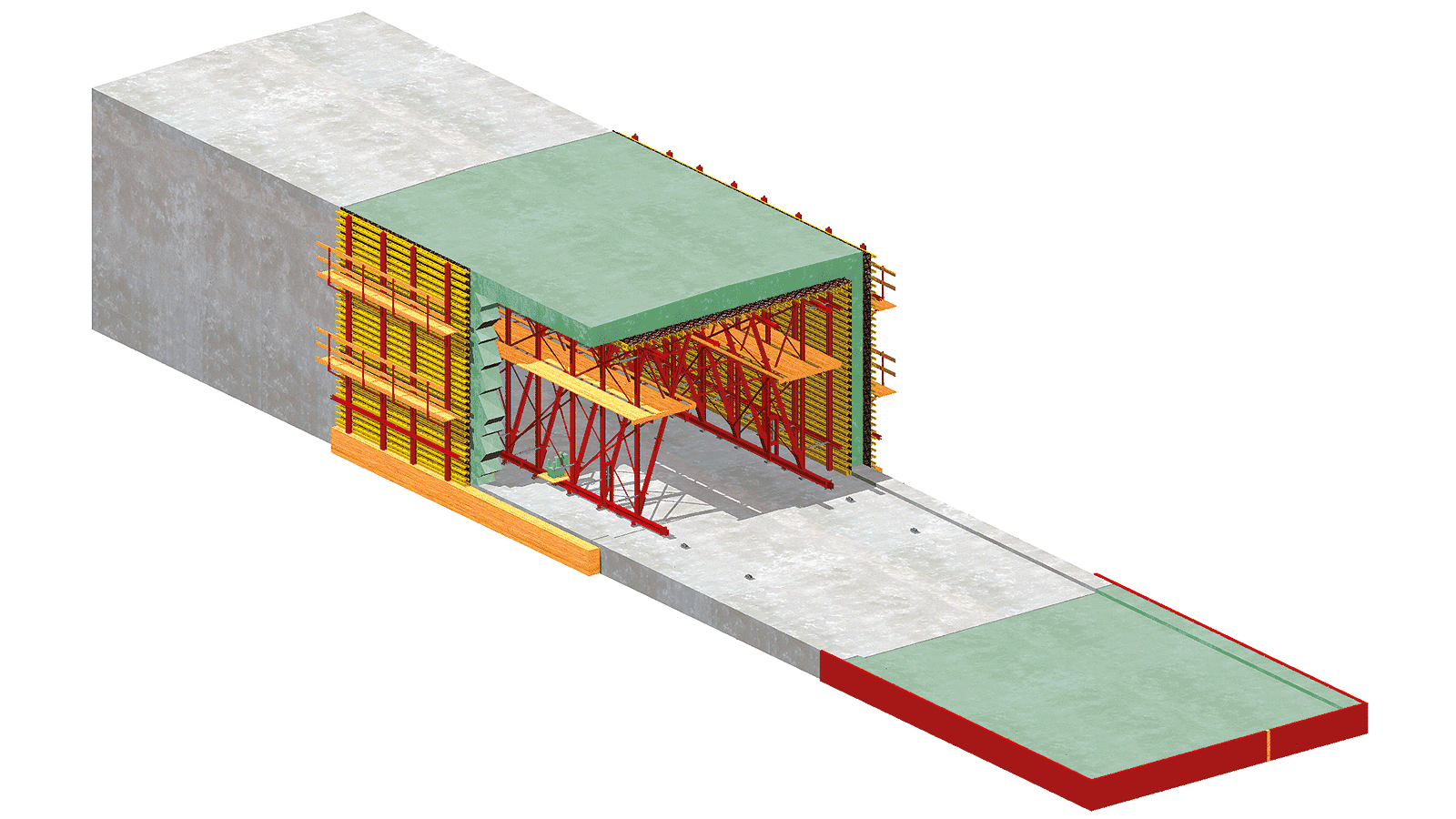

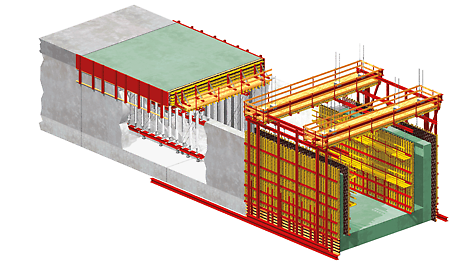

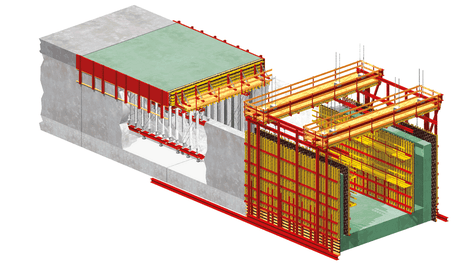

    Solutions for the monolithic, semi-monolithic and separate casting methods
  • VTC Tunnel Formwork Carriage when using mining techniques
    Solutions for the monolithic and separate casting methods

VARIOKIT VTC Tunnel Carriage in action

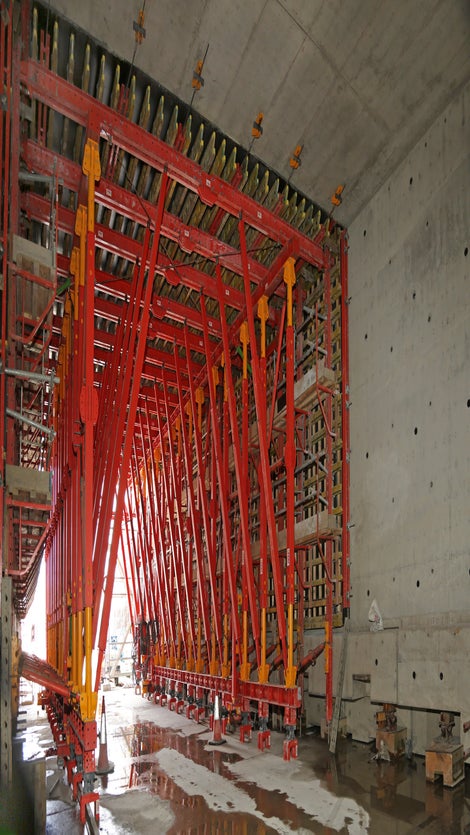

  • The Werrington Grade Separation scheme will make way for a new diveunder railway line.
    Clever solutions for different project requirements

    Project-specific optimised, with rentable VARIOKIT components.



    Project: Werrington Grade Separation

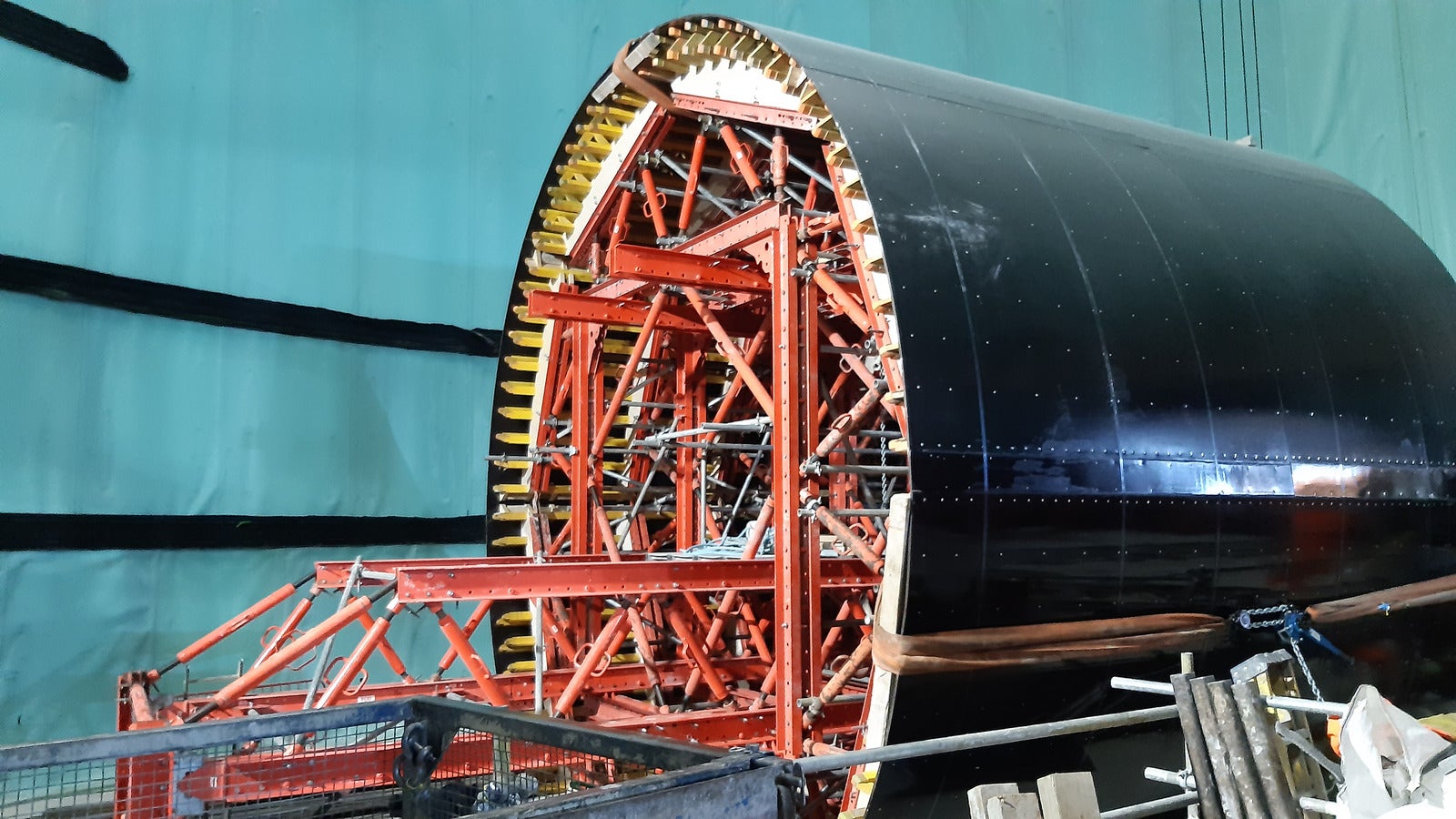

  • The Werrington Grade Separation scheme will make way for a new diveunder railway line.
    Individually configurable – according to customer requirements

    Various equipment combinations and assembly services.



    Project: Thames Tideway, Kirtling Street

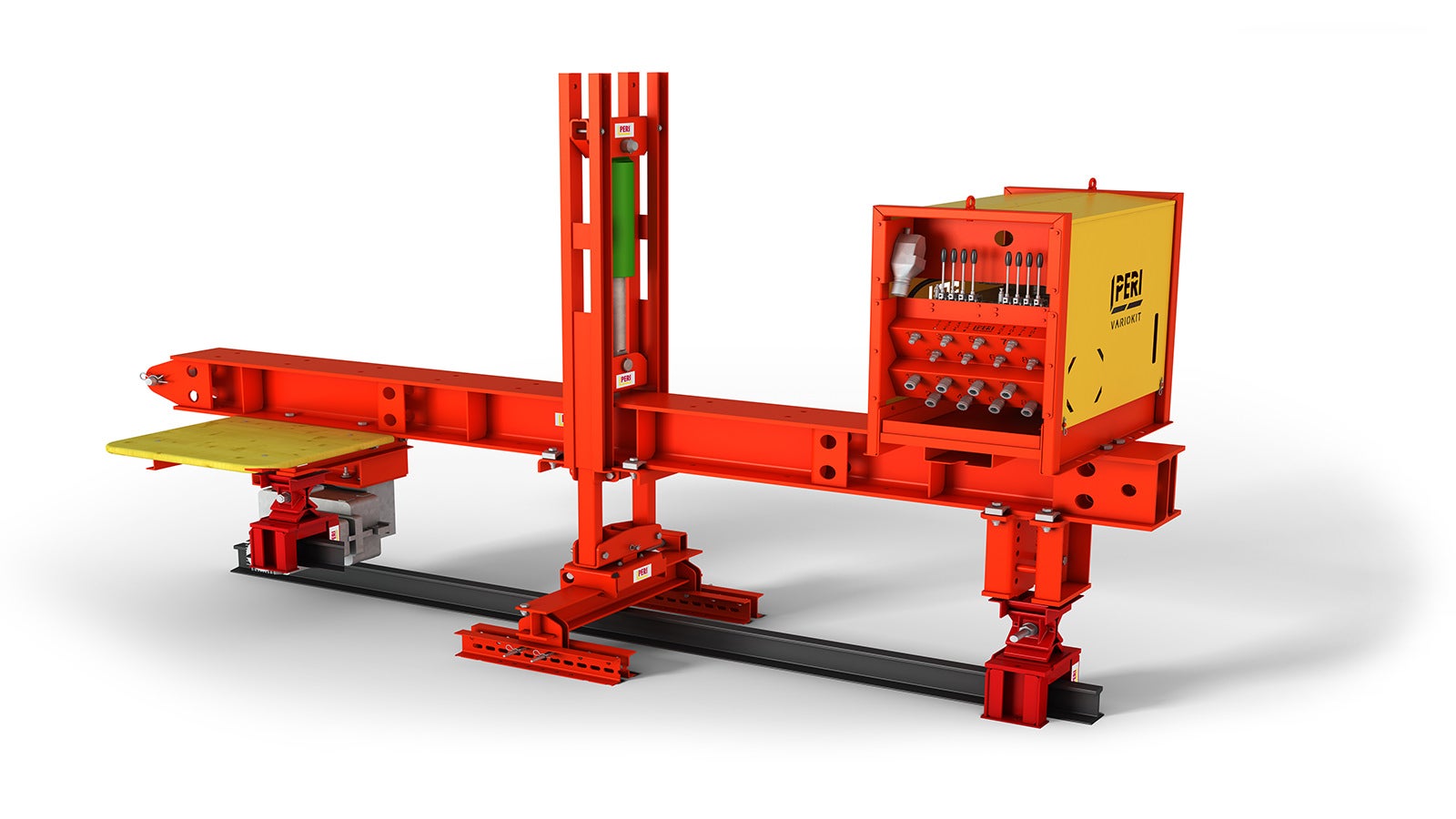

  • Tunnel formwork carriage can be driven hydraulically or electrically driven for economic construction processes.
    Fast working operations

    Simple shuttering and striking operations and easy positioning of the formwork carriage, as well as flexible options for moving procedures. The carriage can be driven hydraulically or electrically driven for economic construction processes.
