Continuously adjustable circular formwork for radii greater than 1.00m without panel alterations

RUNDFLEX Circular Wall Formwork

Continuous and quickly adjustable circular wall formwork for radii with diameters greater than 1.00 m


The RUNDFLEX wall formwork provides pre-assembled standard panels for curved walls. These can be quickly adjusted to suit the required radius and without any modification work on the panel. Therefore, RUNDFLEX is especially effective for realizing structures such as wastewater treatment plants, spiral ramps for multi-storey parking facilities or silos where radii are constantly changing.

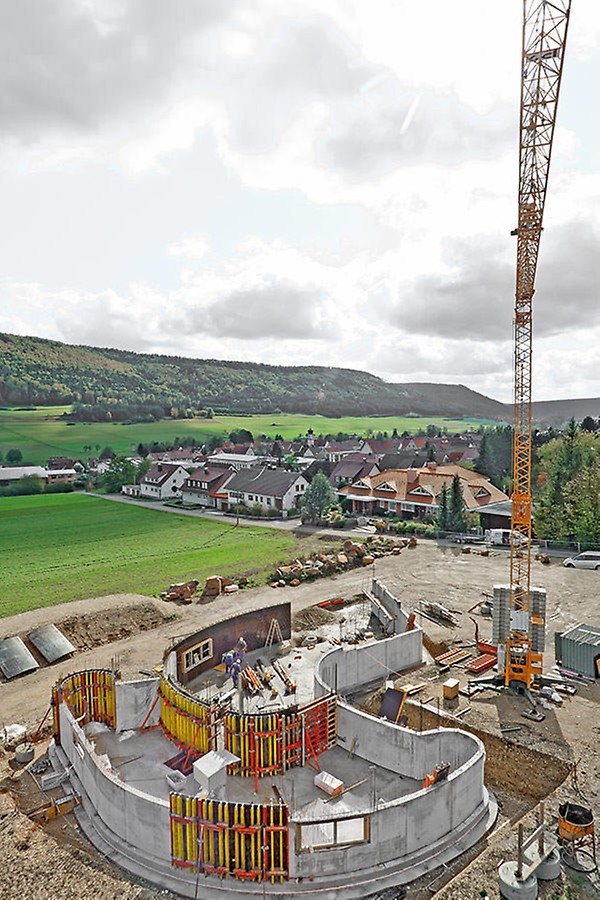

RUNDFLEX Circular Wall Formwork in action

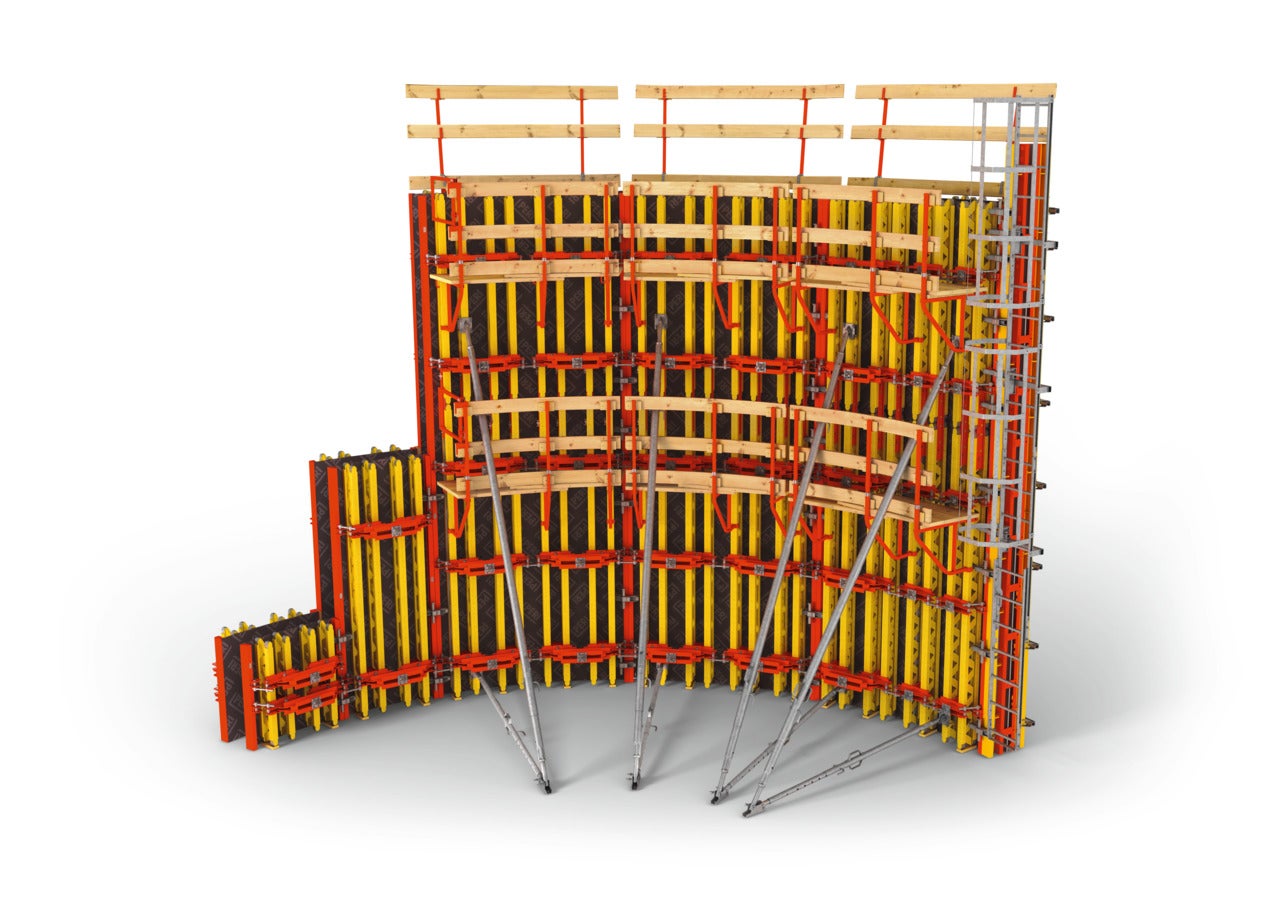

  • 3.60 m high RUNDFLEX formwork for construction of a sewage treatment plant with a radius of 13.76 m.
    Less installation effort

    with pre-assembled units and the proven BFD Alignment Coupler.

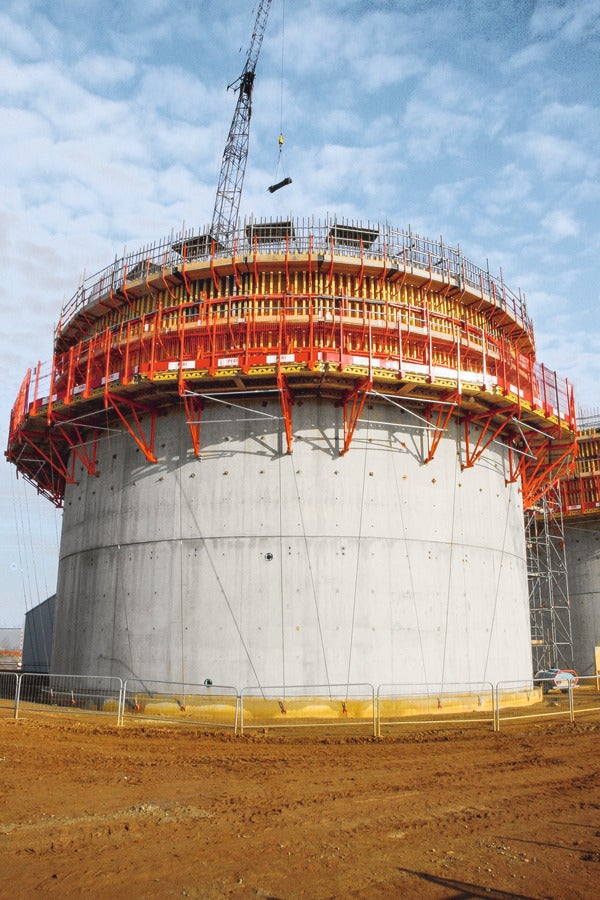

  • through the flexible adjustment of wall internal radii of 1.00 m and larger
    Especially variable

    through the flexible adjustment of wall internal radii of 1.00 m and larger.

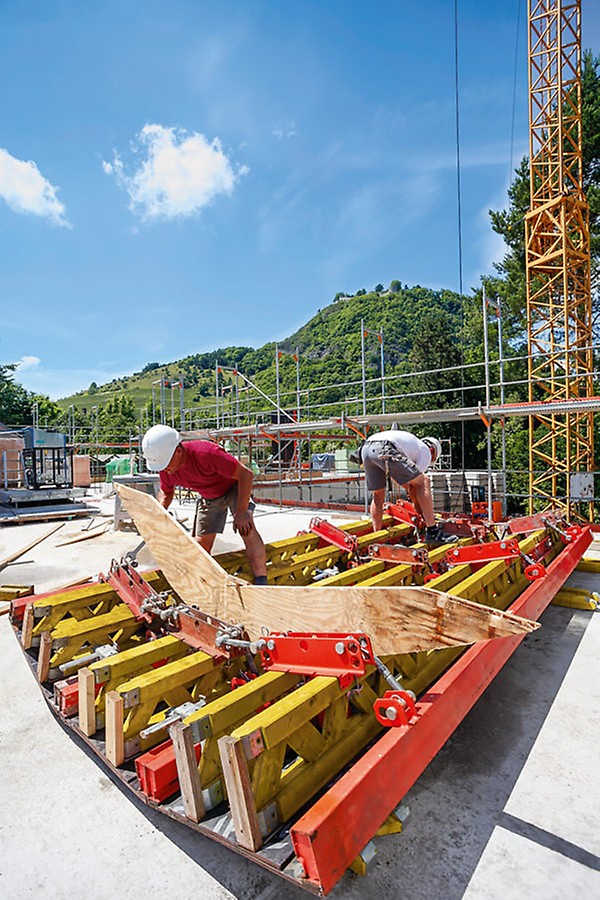

  • Spindles are adjusted using the combi ratchet spanner SW24.
    Fast adjustment

    through a simple adjustment procedure by means of a template and spindles with self-cleaning hexagonal threads.

Product Data Sheet

Additional information
