The galvanized tubular steel slab prop with up to 50 kN load-bearing capacity

PERI PEP 20 and PEP 30 Tubular Steel Props

High load-bearing capacity with low dead weight

PERI PEP 20 and PEP 30 Tubular Steel Props are mainly used for supporting slab formwork. Numerous practical features ensure fast and safe handling.

Galvanization guarantees a long service life. However, if a prop does get damaged during the tough everyday working operations on the jobsite, the inner and outer tubes can be replaced separately.

The PEP props from PERI have been type-tested according to DIN EN 1065.

PEP 20 props correspond to Class D of DIN EN 1065.
The permissible prop load is a minimum of 20 kN for all extension lengths.

PEP 30 props correspond to Class E of DIN EN 1065.
The permissible prop load is a minimum of 30 kN for all extension lengths.

Durability
The 100% galvanisation of all surfaces at the end of the production process ensures a long service life.

PEP 20 - PEP 30 Slab Props in action

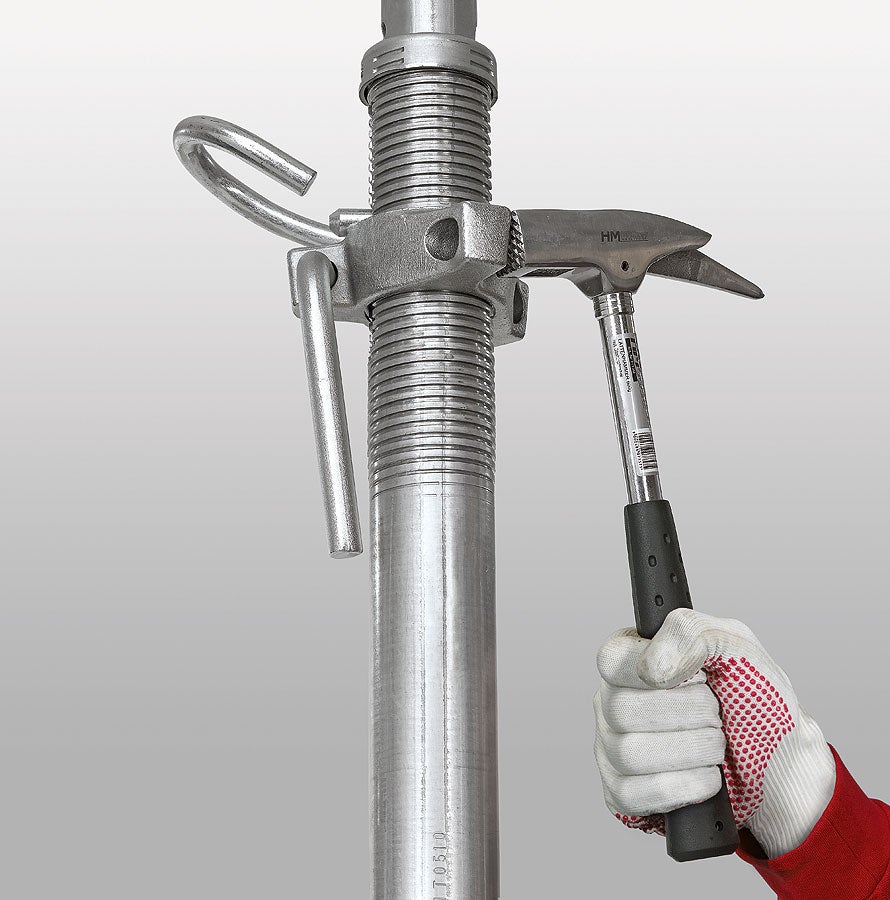

Trendsetting adjusting nut

The form of the lowering nut dictates the direction of lowering the load while the captive handgrip allows easy adjustment.
High-load bearing capacity & easily adjustable

The 12 cm long adjustment range eliminates frequent re-positioning whilst the measuring scale on the inner tube accelerates length pre-adjustments.
