Applications
-

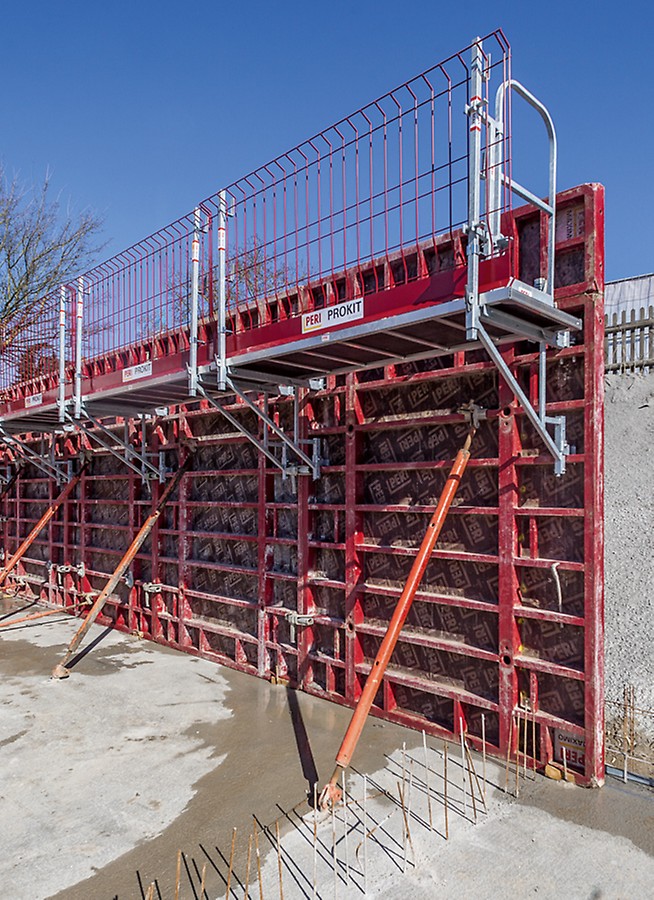

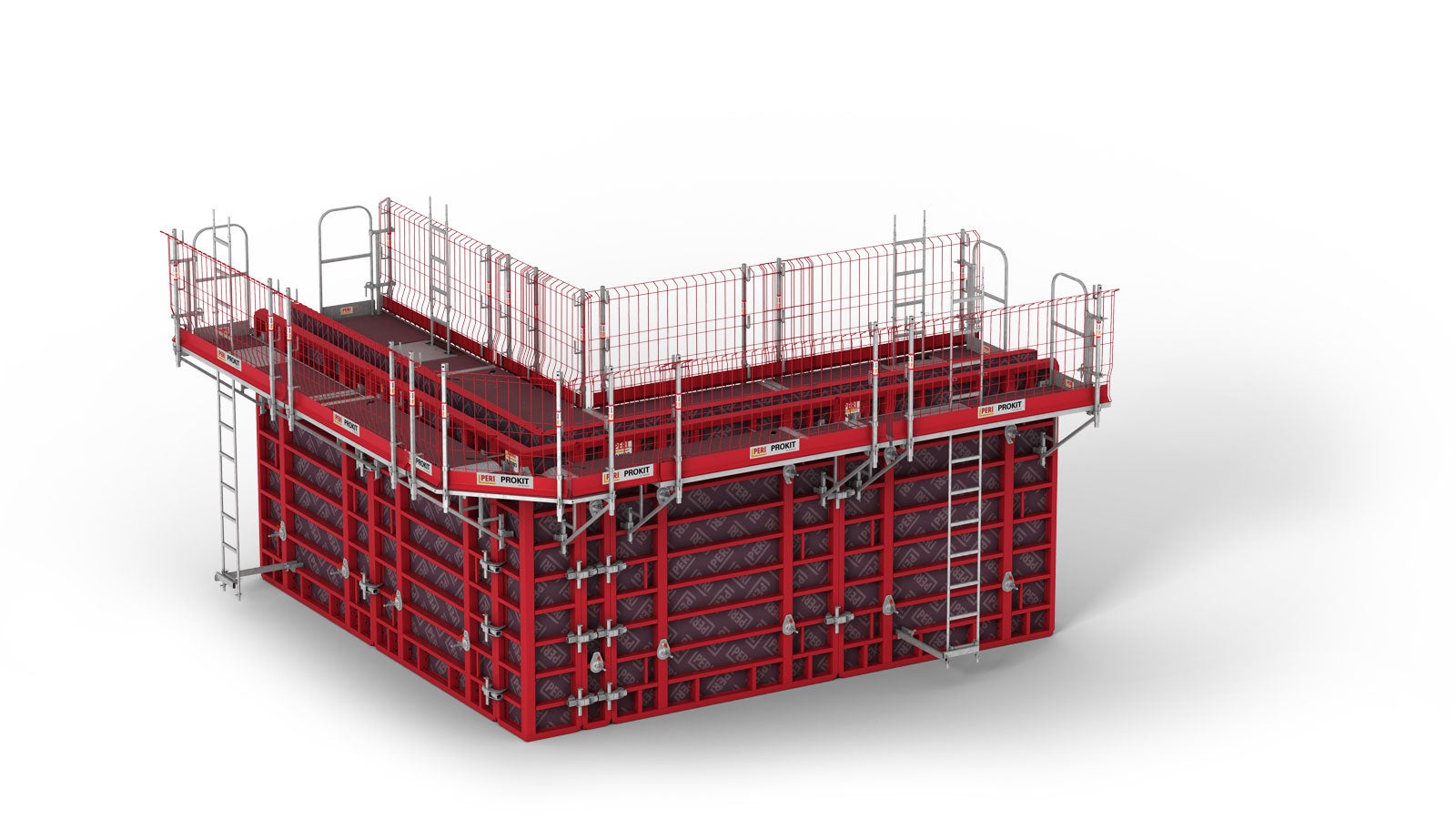

The MXK Bracket System provides high level of safety whilst requiring little installation effort. The lightweight system components are manually-assembled on the ground.
-
Modular platform system for MAXIMO and TRIO with widths of 0.90 m, 1.20 m and 2.40 m
-

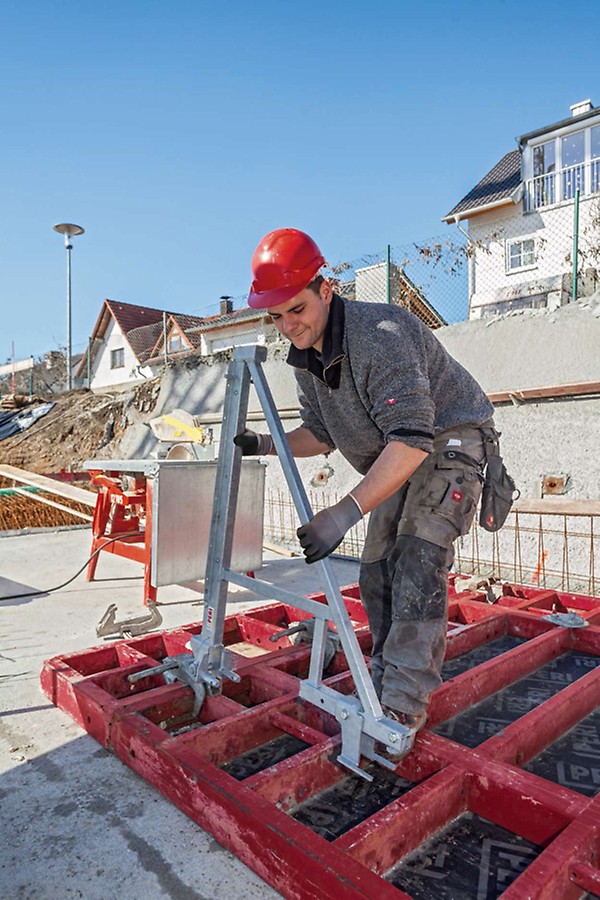

The modular MXK System consists of lightweight, pre-assembled system components. Assembly can take place manually on the ground.
Product Data Sheet
System type
Console system
Dimensions
Widths: 0,90 m | 1,20 m | 2,40 m (console widths)
Material
Consoles made of steel, system coverings made of aluminum and wood
Anti-corrosion and surface coating
Hot-dip galvanized consoles
Fulfilled standard
Permissible load: 150 kg/m², Load class 2 according to EN 12811-1
Weight
13,40 kg | 15,40 kg | 24,60 kg
System components for
External and internal corners, ladder access, front railing, horizontal use of elements
Compatible with
MAXIMO frame formwork, MAXIMO console system MXP, TRIO frame formwork, PROKIT EP 110 fall protection
Other
MXK-RS base console with push-pull support connection for barrier-free walkways
Software
CAD
Apps and tools
PERI Extended Experience App, PERI QuickSolve Planner, Formwork Load Calculator
Other
PERI InSite Construction
