Particularly high versatility
due to its suitability for walls, columns and foundations
-
Simplified material management
due to integrated brace connectors and multifunctional panels
-
Lean and efficient portfolio
with only three panel heights and widths in each case, with inside and outside corners
Applications
-
Ergonomic handlingAssembly is carried out quickly and intuitively by only two people and no crane needed
-
High flexibility
The multi-panels with integrated tie holes at 5 cm intervals provide a high degree of flexibility
-
Time and cost savingsThe low number of reusable system components reduces the amount of material loss on the construction site as well as the amount of timber required.
-

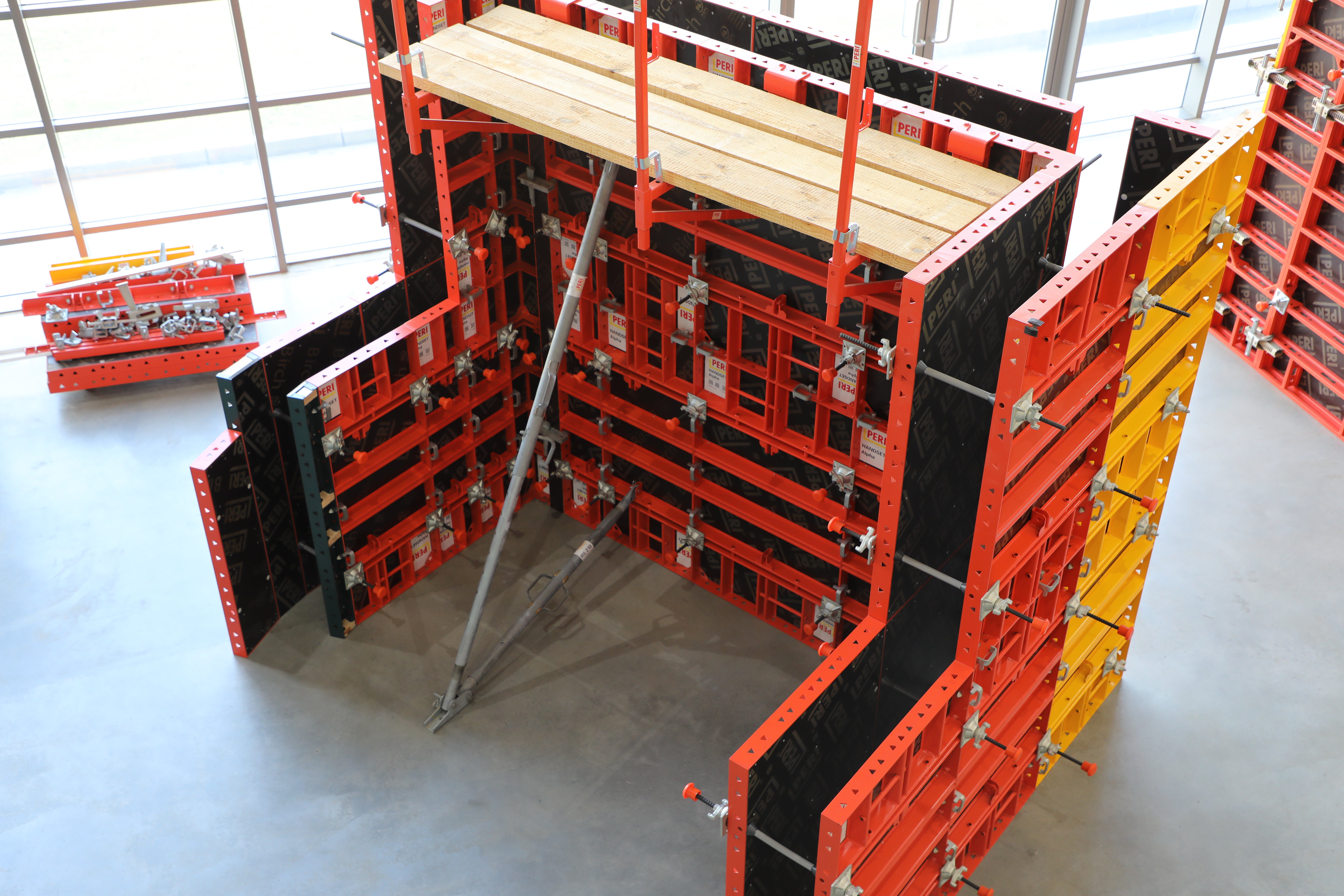

PERI HANDSET Alpha
Explore a revolutionary construction solution with the PERI HANDSET Alpha - a groundbreaking 4-in-1 system that introduces a new dimension to formwork universality. This innovative system enables you to effortlessly shape walls, columns, foundations, and beam sides using a single, versatile system. Experience less weight, more flexibility, and better handling on site, making construction more efficient, safer, and faster.
Product Data Sheet
Product Data Sheet
Dimensions
Element heights: 3.00 m/1.50 m/1.20m, ,
Element widths: 0.90 m/0.60 m/0.30m
Fresh concrete pressure
Max. permissible fresh concrete pressure: 60 kN/m² (for walls), Max. permissible fresh concrete pressure: 60 kN/m² (for columns up to 900mm x 900mm), Max. permissible fresh concrete pressure: 75 kN/m² (for columns up to 600mm x 600mm)
Material
Steel and powder-coated panels
Fulfilled standard
Basically for all applications: flatness according to DIN 18202, table 3, line 6
Weight
34 kg/m²
Other
Easy cleaning due to inclined profiles in combination with high-quality powder-coated frames.
